Quality Air Seeder Parts, proudly made in the USA.

Latest Parts and Products - Click Here

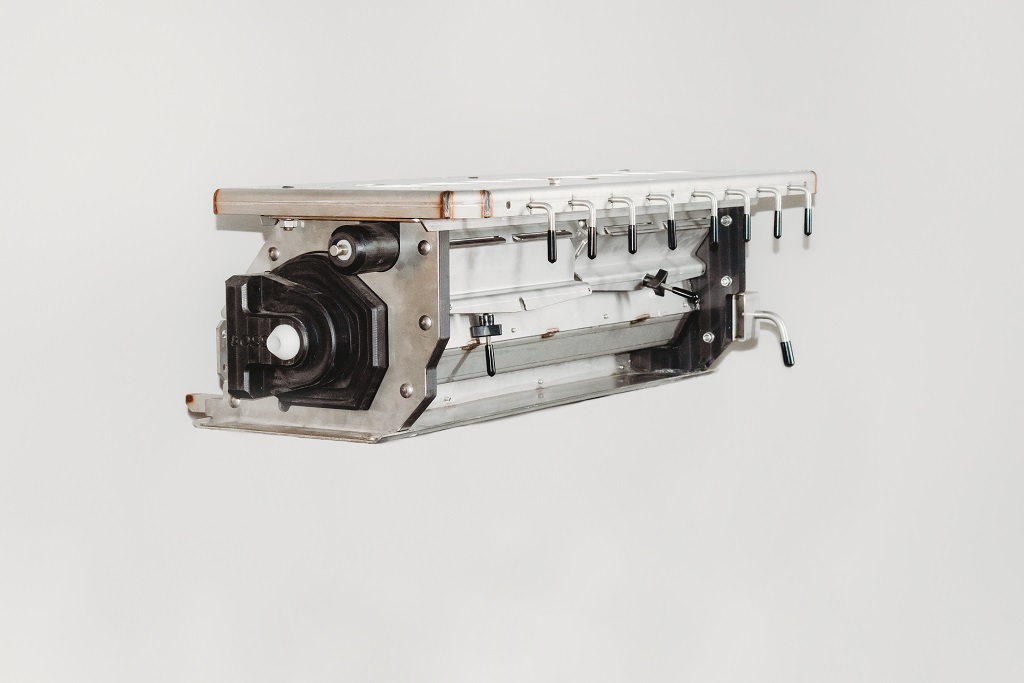

BOSS 2.0 Stainless Steel Meter Housing w/ Shut-off System

Part Number: A-BOSS20

Replacement for 1900 & 1900 Non-SectionCommand™ John Deere Carts.

Replaces John Deere # AA67290, AA63402 & AA65427

Includes: BOSS 2.0 Stainless Steel Meter Housing, Meter Roll Shaft, Slide Gate Plate, Slide Gate Doors (8), Slide Gate Handles (8), Meter Hardware, Drive Coupler Kit, Meter Mounting Plate, Drop In Plastic Dividers (2).

Installed: Agitator Shaft, Agitator Shaft Hardware, Locking Handle & Hardware

FOR HYDRAULIC DRIVE METER - HYDRAULIC BRACKET KIT(A-HYDRBRKIT)

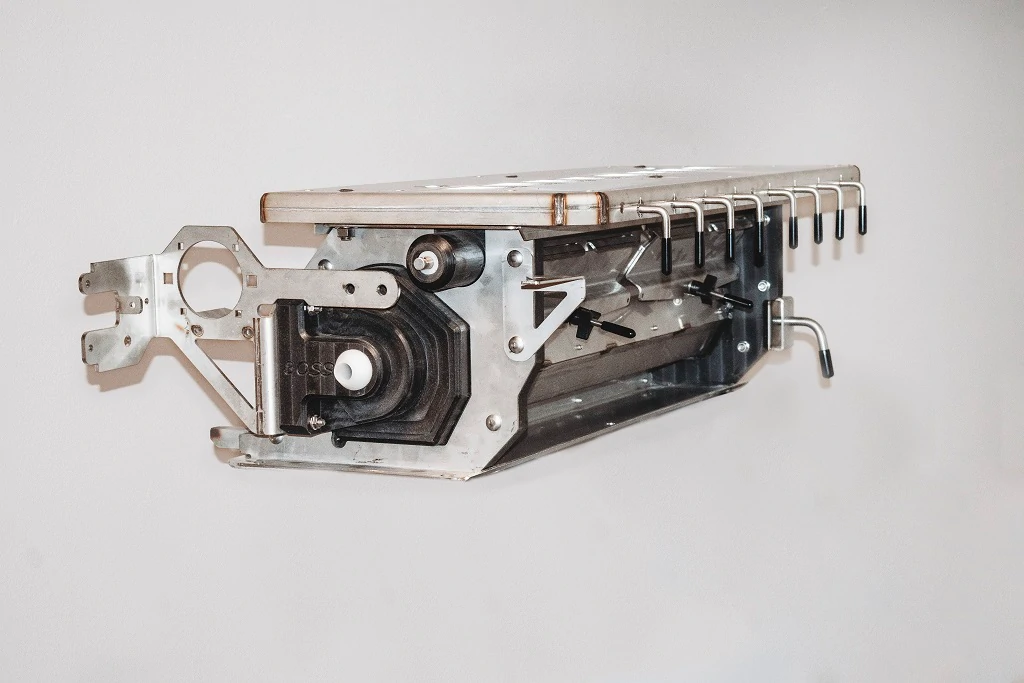

BOSS 2.0 SC Stainless Steel Meter Housing w/ Shut-off System

Part Number: A-BOSS20SC

Replacement for 1900 & 1910 John Deere Carts with SectionCommand™.

Includes: BOSS 2.0 SC Stainless Steel Meter Housing, Meter Roll Shaft, Slide Gate Plate, Slide Gate Doors (8), Slide Gate Handles (8), Meter Hardware, Drive Coupler Kit, Meter Mounting Plate, Hydraulic Bracket Kit, Hydraulic Drive Hardware, Valve Body Mounting Brackets (2), Drop In Plastic Dividers (2).

Installed: Agitator Shaft, Agitator Shaft Hardware, Drop In Dividers, Locking Handle & Hardware

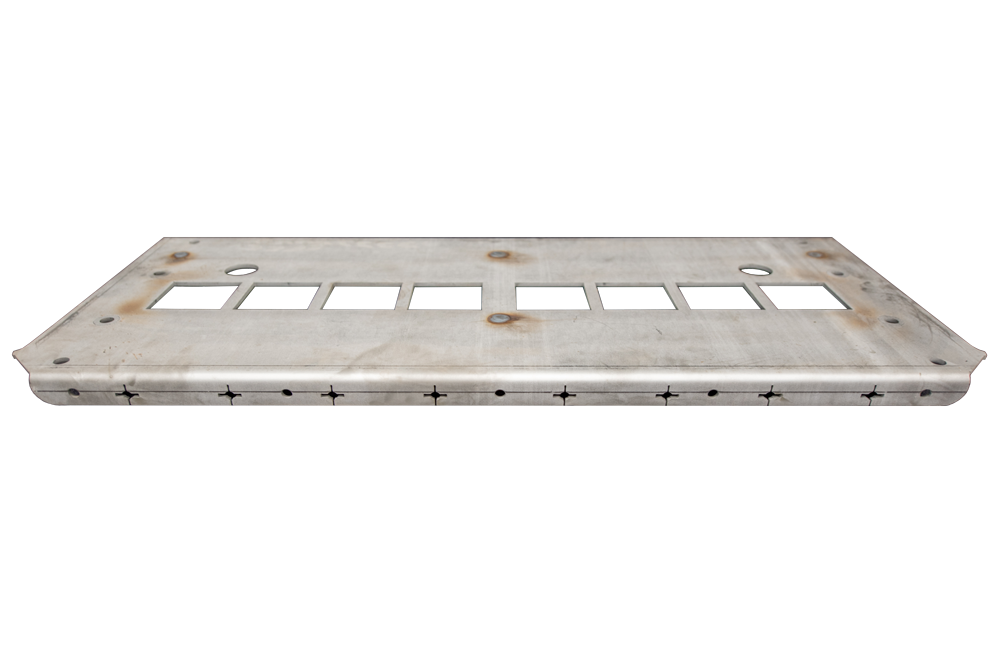

Meter Mounting Plate

Part Number: A-MPLATE

Transition Kit

Part Number: A-TRANS415KIT

Includes: Transition, Transition Gasket, Ladder Hardware.

Anti-Seize Required

Early 1900 carts with angled ladder tubes will require purchase of ladder extensions (A-TRANEXT)

550 BU Transition Kit

Part Number: A-TRANS550KIT

Includes: 550 BU Transition, Transition Gasket, Ladder Hardware.

Anti-Seize Required

Transition Gasket

Part Number: A-TRANSEAL

Replaces John Deere #: A70517

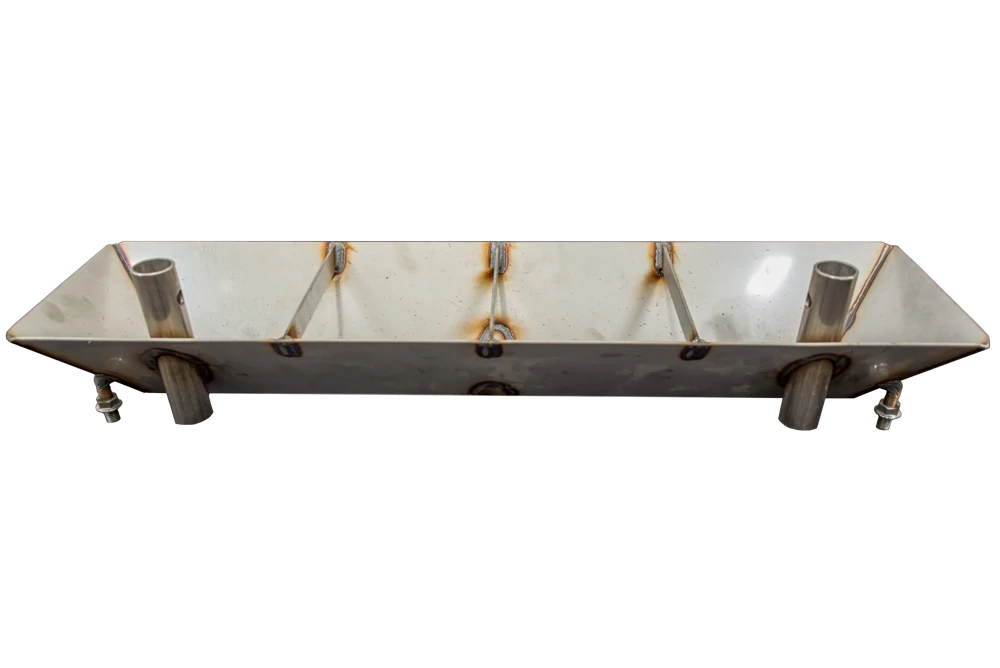

Transition

Part Number: A-TRANS415

Replaces John Deere #: AA47638 [Serial No. 685241] - TOW-BETWEEN, AA47638 [Serial No. 685196] - TOW-BEHIND

Anti-Seize Required

Early 1900 carts with angled ladder tubes will require purchase of ladder extensions (A-TRANEXT)

550 BU Transition

Part Number: A-TRANS550

Center Tank Replacement

Replaces John Deere #: AA78276, AA85582

Anti-Seize Required

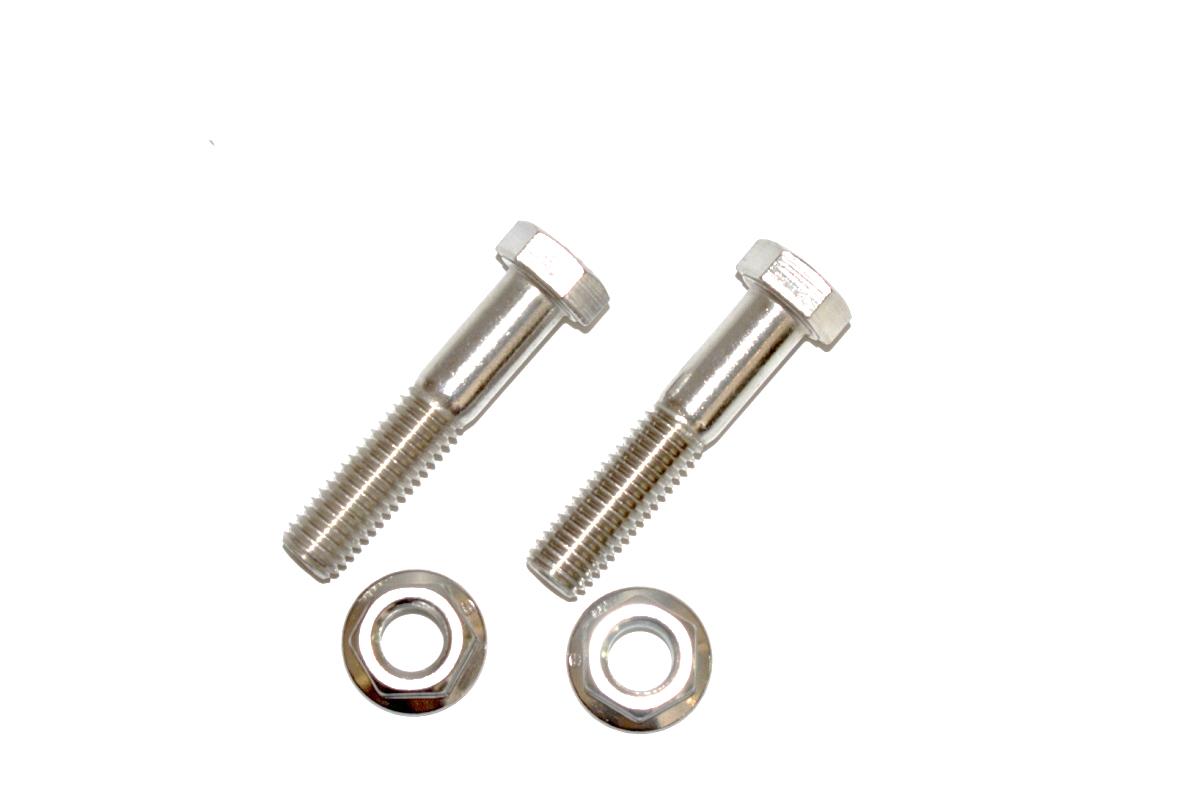

Ladder Hardware

Part Number: A-LADDERHW

Includes: 1/2" x 2 1/2" Hex Head Bolts (2), ½” Serrated Flange Nuts (2).

Anti-Seize Required

Transition Extensions (Set of 2)

Part Number: A-TRANEXT

Extensions for early 1900 carts with angled ladder tubes.

Includes: Extensions (2), Ladder Hardware.

Tank Transition Not Included

Anti-Seize Required

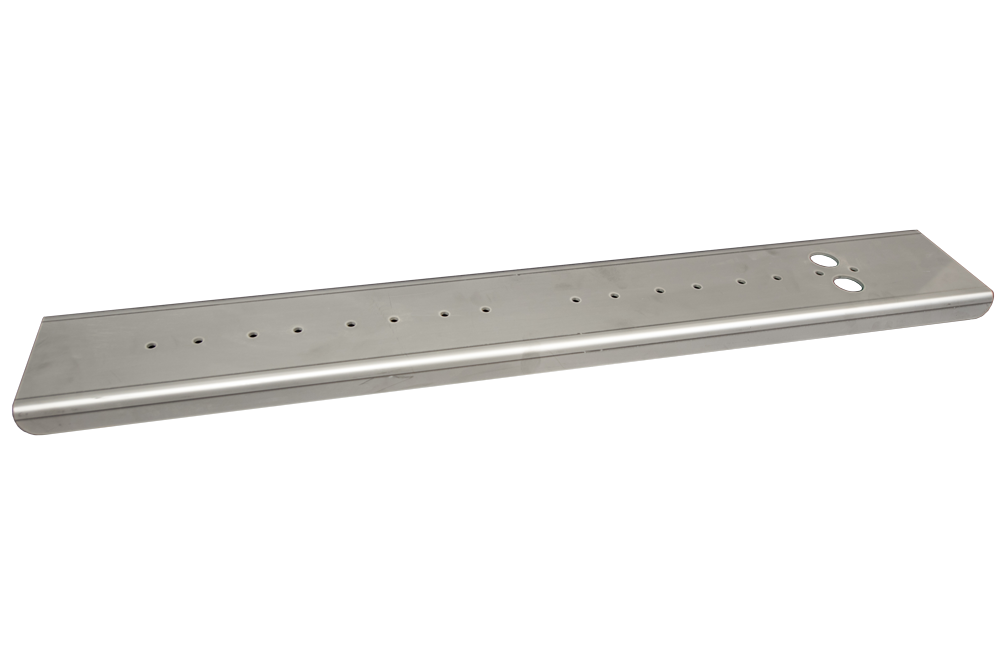

Slide Gate Plate

Part Number: A-SGPLATE200

For use with slide gate doors & handles

Plate Only - Gates and Handles Not Included

Slide Gate Door

Part Number: A-SGDOOR200

Slide gate for shutoff

Note: Requires (8) per meter

Anti-Seize Required

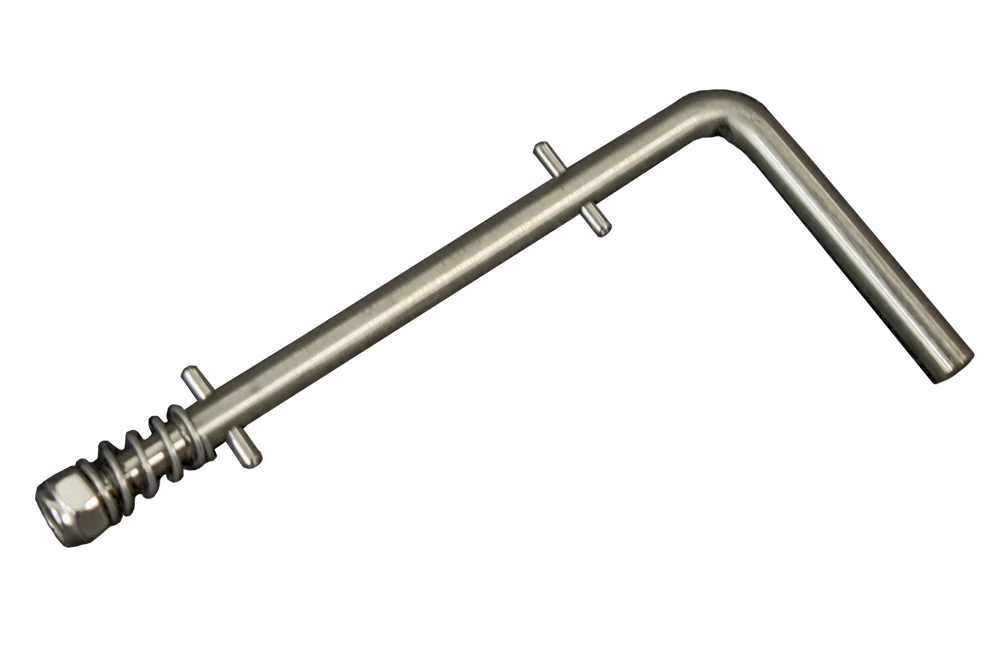

Slide Gate Handle

Part Number: A-SGHNDL200

Handle for slide gate

Note: Requires (8) per meter

Anti-Seize Required

Single Shoot 8 Run Kit

Part Number: A-SSKIT8

Includes:

Single Shoot Plate

Plenum Side Plates (2)

Bag Hangers (4)

Clean Out Door

Clean Out Door Latches (2)

Plenum Gaskets (2)

8 Run Single Shoot Filler

Single Shoot Below Meter Hardware

Single Shoot 8 Run Hardware

Single Shoot 6 Run Kit

Part Number: A-SSKIT6

Includes:

Single Shoot Plate

Plenum Side Plates (2)

Bag Hangers (4)

Clean Out Door

Clean Out Door Latches (2)

Plenum Gaskets (2)

6 Run Single Shoot Filler

Single Shoot Below Meter Hardware

Single Shoot 6 Run Hardware

Single Shoot 4 Run Kit

Part Number: A-SSKIT4

Includes:

Single Shoot Plate

Plenum Side Plates (2)

Bag Hangers (4)

Clean Out Door

Clean Out Door Latches (2)

Plenum Gaskets (2)

4 Run Single Shoot Filler

Single Shoot Below Meter Hardware

Single Shoot 4 Run Hardware

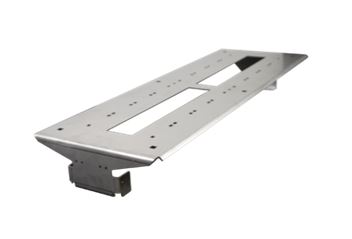

Single Shoot Plate

Part Number: A-SHOOT425

Replaces John Deere #: A88060

Single Shoot Manifold Kit

Part Number: A-SSHOOTKIT

Includes: Clamps, Gasket, Hardware

Universal – Fits all Single Shoot Run Configurations

Double Shoot 8 Run Kit

Part Number: A-DSKIT8

Includes:

Double Shoot 8 Run Hardware

Double Shoot Plate

Double Shoot Shift Handles (2)

Double Shoot Shift Bracket - Left

Double Shoot Shift Bracket - Right

Double Shoot Shift Bracket Hardware

Bag Hangers (4)

Clean Out Door Latches (2)

Clean Out Door

Double Shoot Filler Gaskets (2)

Double Shoot Below Meter Hardware

8 Run Double Shoot Cover

Plenum Gasket

Double Shoot Gasket

Double Shoot 6 Run Kit

Part Number: A-DSKIT6

Includes:

Double Shoot Plate

Double Shoot Shift Handles (2)

Double Shoot Shift Bracket - Left

Double Shoot Shift Bracket - Right

Double Shoot Shift Bracket Hardware

Bag Hangers (4)

Clean Out Door Latches (2)

Clean Out Door

Double Shoot Filler Gaskets (2)

Double Shoot Below Meter Hardware

6 Run Double Shoot Cover

Double Shoot 6 Run Hardware

Plenum Gasket

Double Shoot Gasket

Double Shoot 4 Run Kit

Part Number: A-DSKIT4

Includes:

Double Shoot Plate

Double Shoot Shift Handles (2)

Double Shoot Shift Bracket - Left

Double Shoot Shift Bracket - Right

Double Shoot Shift Bracket Hardware

Bag Hangers (4)

Clean Out Door Latches (2)

Clean Out Door

Double Shoot Filler Gaskets (2)

Double Shoot Below Meter Hardware

4 Run Double Shoot Cover

Double Shoot 4 Run Hardware

Plenum Gasket

Double Shoot Gasket

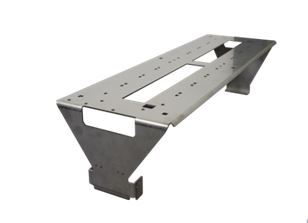

Double Shoot Plate

Part Number: A-DSHOOT435

Replaces John Deere #: AA60888

Double Shoot Air Manifold

Part Number: A-DSMNFLD

Replaces John Deere #: AA48322

Double Shoot Gasket

Part Number: A-DSGASKET

Double Shoot Filler Gaskets (2)

Part Number: A-DSFILLER

Double Shoot Shift Handle

Part Number: A-DSSHIFT

Replaces John Deere #: AA50642

Includes: 1/4" Washers (6).

Note: Requires (2) per double shoot meter

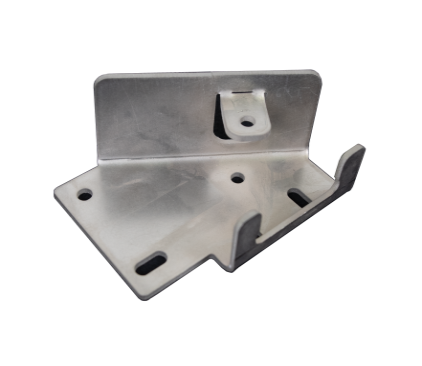

Double Shoot Shift Bracket – Left

Part Number: A-LSHIFT

Replaces John Deere #: AA50030

Double Shoot Shift Bracket Hardware

Part Number: A-DSBRKHW

Includes: Pin, Washer, Spring, D-ring.

Clean Out Door

Part Number: A-CLNDOOR

Replaces John Deere #: A88237

Plenum Side Plate

Part Number: A-PSPLATE

Replaces John Deere #: A72276

Note: Requires (2) per single shoot meter housing

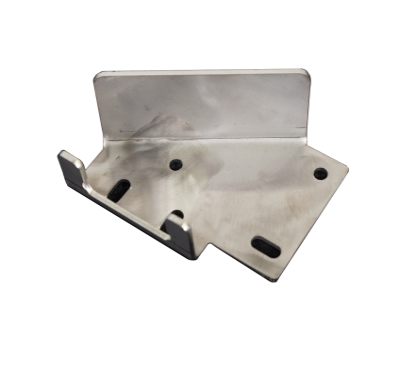

Double Shoot Shift Bracket – Right

Part Number: A-RSHIFT

Replaces John Deere #: A64920

Bag Hanger

Part Number: A-HANGER

Replaces John Deere #: A69543

Note: Requires (4) per meter

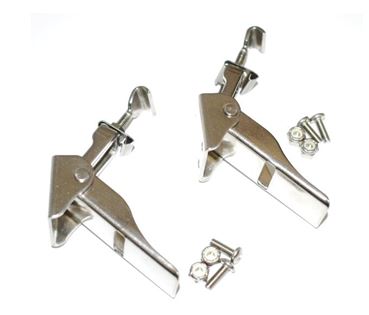

Clean Out Door Latches

Part Number: A-SSLATCH

Replaces John Deere #: AA61976

Includes: Latches (2), #8 x ¾” Machine Screws (4), #8 Nyloc Nuts (4).

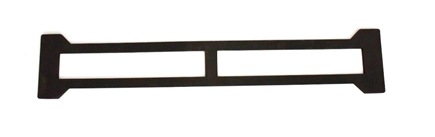

Plenum Gasket

Part Number: A-PLSEAL

Replaces John Deere #: A70821, A64856

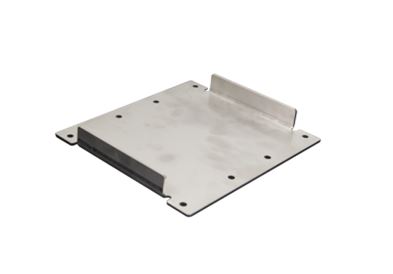

6 Run Single Shoot Filler

Part Number: A-6SFILL

Replaces John Deere #: A63066

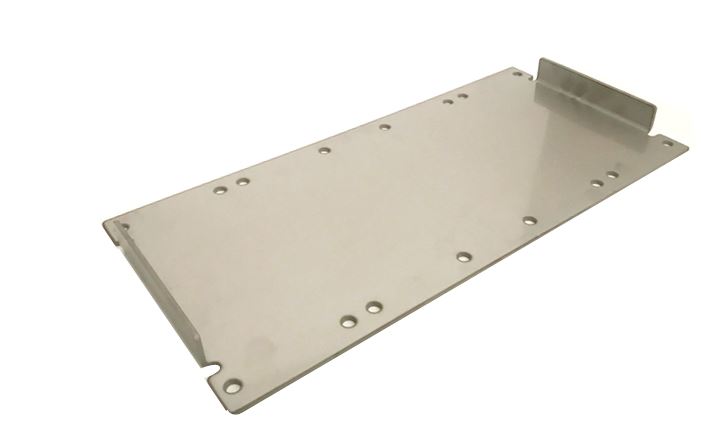

4 Run Single Shoot Filler

Part Number: A-4SFILL

Replaces John Deere #: A63064

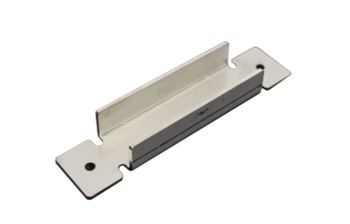

8 Run Single Shoot Filler

Part Number: A-8SFILL

Replaces John Deere #: AA48753

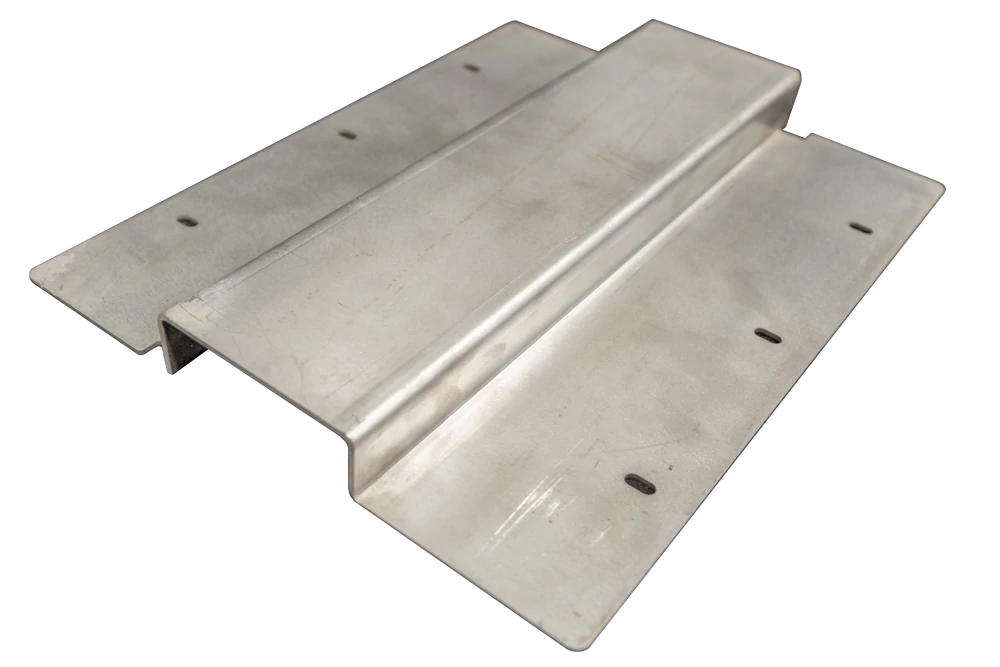

4 Run Double Shoot Cover

Part Number: A-4DCOVER

Replaces John Deere #: AA48757

Includes: Double Shoot Filler Gaskets (2).

8 Run Double Shoot Cover

Part Number: A-8DCOVER

Replaces John Deere #: AA48753

Includes: Double Shoot Filler Gaskets (2).

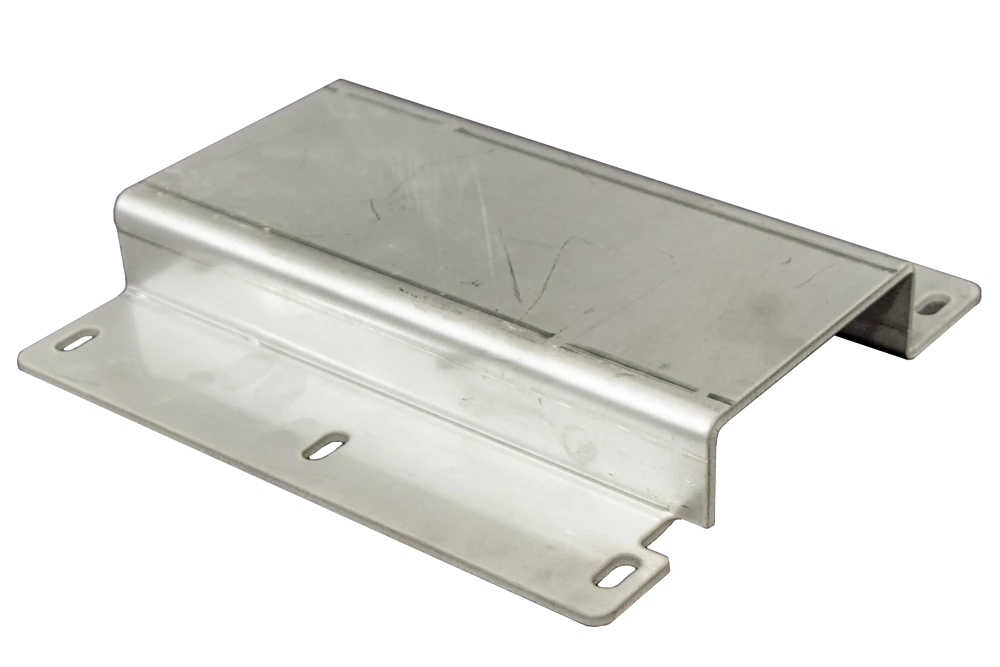

6 Run Double Shoot Cover

Part Number: A-6DCOVER

Replaces John Deere #: AA48755

Includes: Double Shoot Filler Gaskets (2).

Double Shoot 6 Run Hardware

Part Number: A-DSHW6

Includes:

1/4" x 7.5” Carriage Bolts (24)

1/4" x 5/8" Carriage Bolts (6)

#14 x 3/4" Hex Head Screws (12)

1/4" Flat Washers (24)

1/4" Serrated Flange Nuts (30)

Anti-Seize Required

Double Shoot 8 Run Hardware

Part Number: A-DSHW8

Includes:

1/4" x 7.5” Carriage Bolts (32)

1/4" x 5/8" Carriage Bolts (2)

#14 x 3/4" Hex Head Screws (16)

1/4" Flat Washers (32)

1/4" Serrated Flange Nuts (34)

Anti-Seize Required

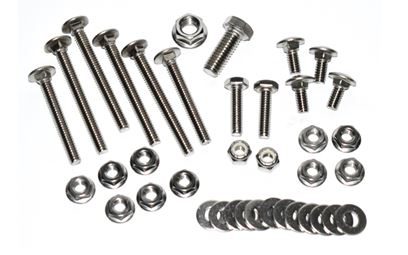

Double Shoot Below Meter Hardware

Part Number: A-DSHWBM

Includes:

1/4" x 2-1/2" Carriage Bolts (4)

1/4" x 2" Carriage Bolts (2)

1/4" x 5/8" Carriage Bolts (4)

1/4" Serrated Flange Nuts (10)

3/8" x 1" Hex Head Bolt (1)

1/4" x 1” Hex Head Bolts (2)

1/4" Flat Washers (12)

1/4" Nyloc Nuts (2)

3/8” x 1-1/4" Carriage Bolts (6)

3/8” Serrated Flange Nuts (7)

1/4" Nylon Washers (6)

Anti-Seize Required

Double Shoot 4 Run Hardware

Part Number: A-DSHW4

Includes:

1/4" x 7.5” Carriage Bolts (16)

1/4" x 5/8" Carriage Bolts (6)

#14 x 3/4" Hex Head Screws (8)

1/4" Flat Washers (16)

1/4" Serrated Flange Nuts (22)

Anti-Seize Required

Single Shoot 8 Run Hardware

Part Number: A-SSHW8

Includes:

1/4" x 4” Carriage Bolts (32)

1/4" x 5/8" Carriage Bolts (2)

#14 x 3/4" Hex Head Screws (16)

1/4" Flat Washers (32)

1/4" Serrated Flange Nuts (34)

Anti-Seize Required

Single Shoot 6 Run Hardware

Part Number: A-SSHW6

Includes:

1/4" x 4” Carriage Bolts (24)

1/4" x 5/8" Carriage Bolts (8)

#14 x 3/4" Hex Head Screws (12)

1/4" Flat Washers (24)

1/4" Serrated Flange Nuts (32)

Anti-Seize Required

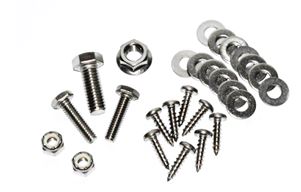

Single Shoot Below Meter Hardware

Part Number: A-SSHWBM

Includes:

#10 x 3/4” Screws (8)

3/8" x 1" Hex Head Bolt (1)

1/4" x 1” Hex Head Bolts (2)

1/4" Flat Washers (12)

1/4" Nyloc Nuts (2)

3/8” x 1-1/4" Carriage Bolts (6)

3/8” Serrated Flange Nuts (7)

1/4" Nylon Washers (6)

Anti-Seize Required

Single Shoot 4 Run Hardware

Part Number: A-SSHW4

Includes:

1/4" x 4” Carriage Bolts (16)

1/4" x 5/8" Carriage Bolts (16)

#14 x 3/4" Hex Head Screws (8)

1/4" Flat Washers (16)

1/4" Serrated Flange Nuts (32)

Anti-Seize Required

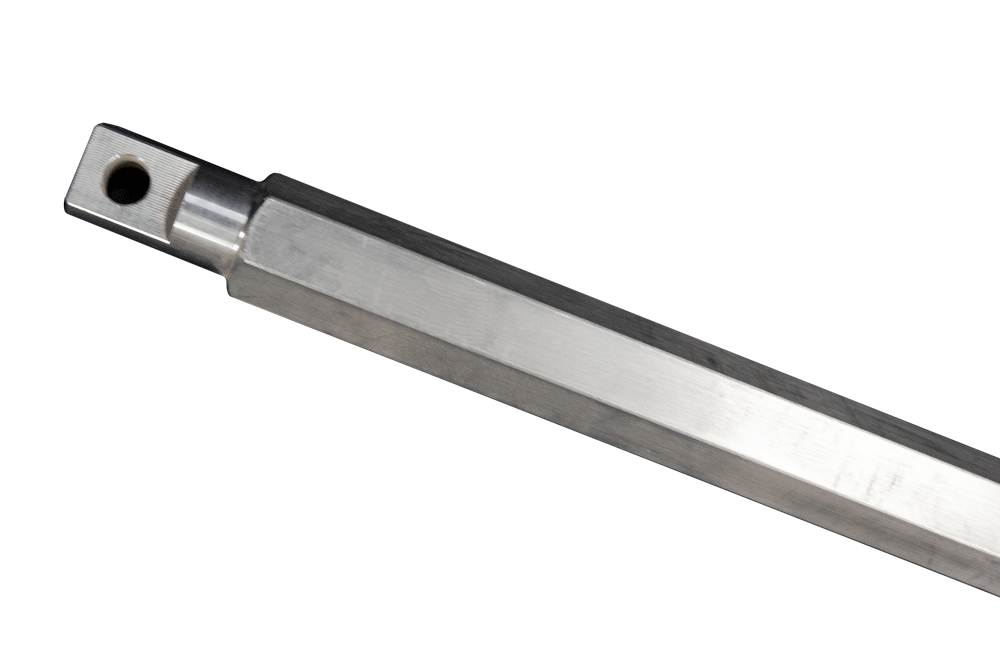

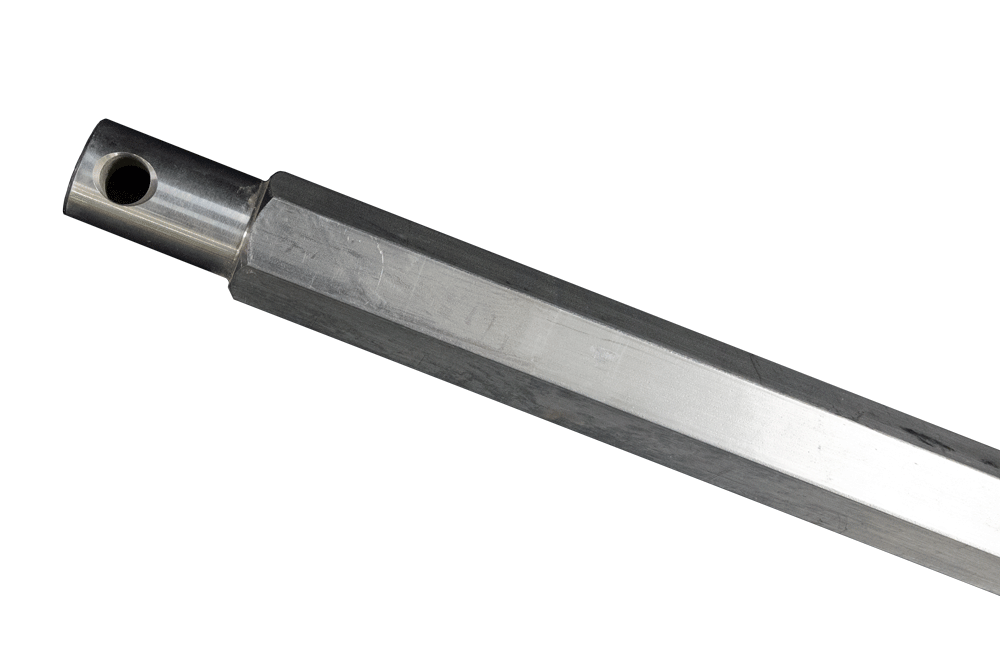

Notched Hex Shaft - Meter Roller

Part Number: A-NHEXSFT

Replaces John Deere #: A94100

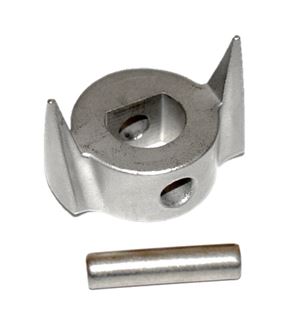

Drive Coupler Kit

Part Number: A-DRVCPL

For use with notched hex shaft & meter roller shaft

Includes:

2-prong Sprocket, Large Roll Pin

Replaces John Deere #: A94099, 34M7217

Solid Hex Shaft - Meter Roller

Part Number: A-SHEXSFT

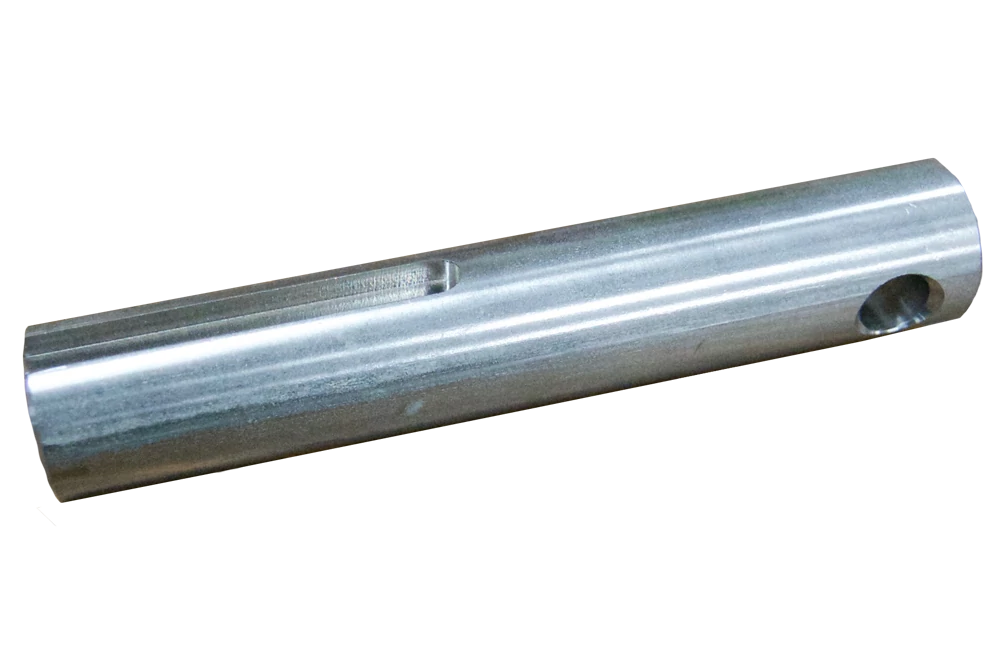

Meter Roll Shaft

Part Number: A-SHAFT210

Replaces John Deere #: A86501

Meter Roll Shaft Bushing Kit

Part Number: A-MRBUSHING

Includes: Meter Roll Shaft Bushing, Washer, #10 X 1 1/2" Self Tapping Screws (3), Nylon Washers (6)

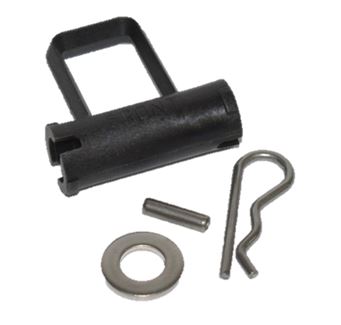

Agitator Shaft Hardware

Part Number: A-AGSFTHW

Includes:Agitators (8), Stainless Hair Pins (16), Roll Pin, Thick Washers (2)

Agitator Shaft Bushing Kit

Part Number: A-AGBUSHING

Replaces John Deere #: M112835

Includes: Agitator Bushings (2)

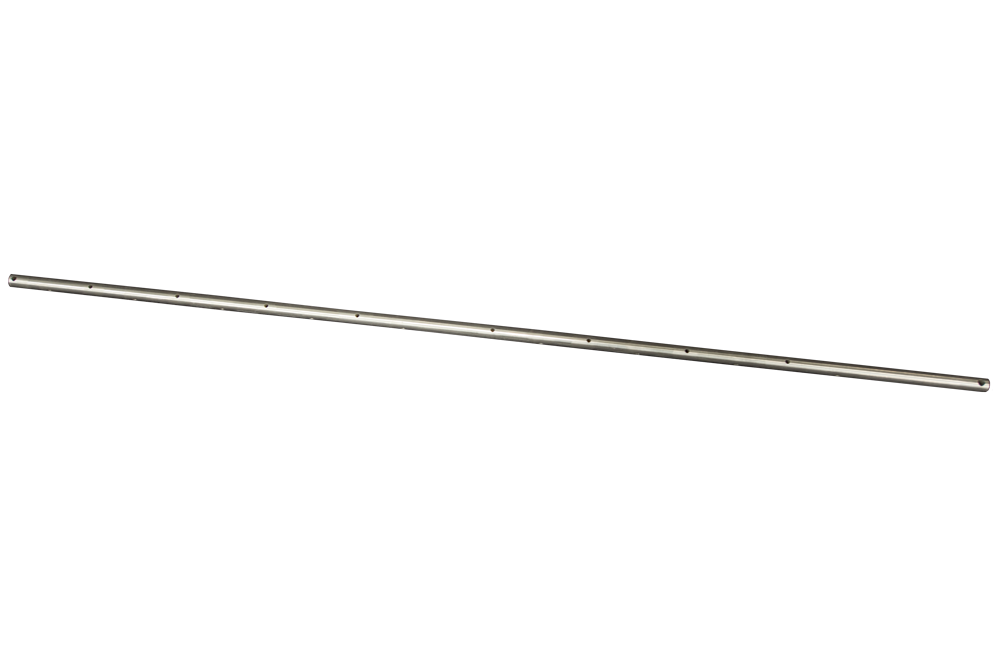

Agitator Shaft

Part Number: A-SHAFT220

Replaces John Deere #: A57870

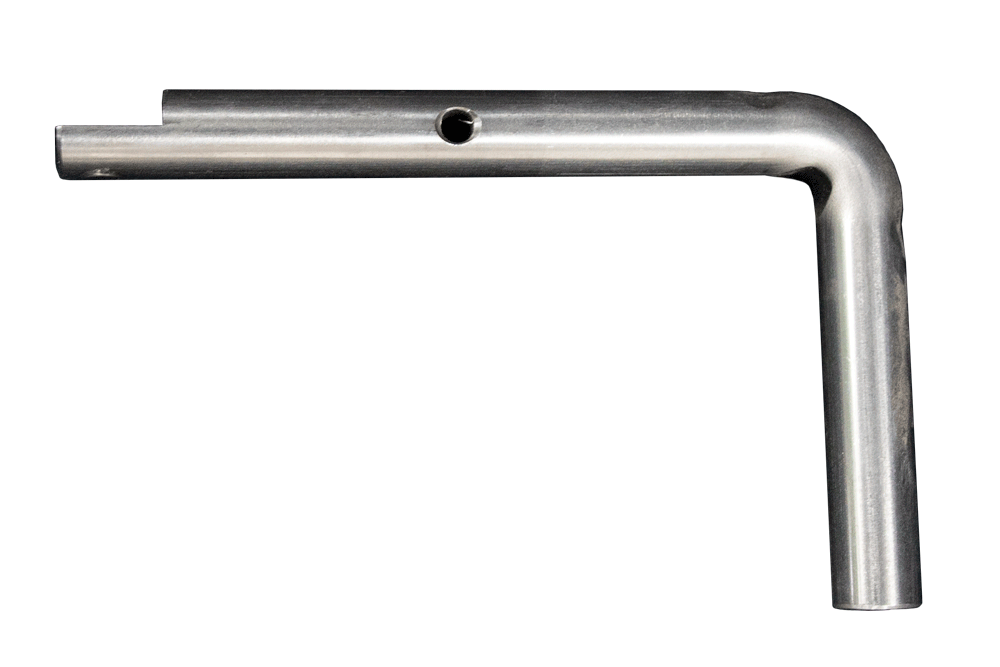

Locking Handle & Hardware

Part Number: A-LKHNDLHW

Includes: Locking Handle, Rubber Cap, Button Head Screw, Plastic Locking Cam, Outside Washer, Inside Washer

Anti-Seize Required

(10) 2 5/16" - 3 1/4" Stainless Hose Clamp & Screw

Part Number: A-CLAMP230

Set Of Ten

Replaces John Deere #: AR21999

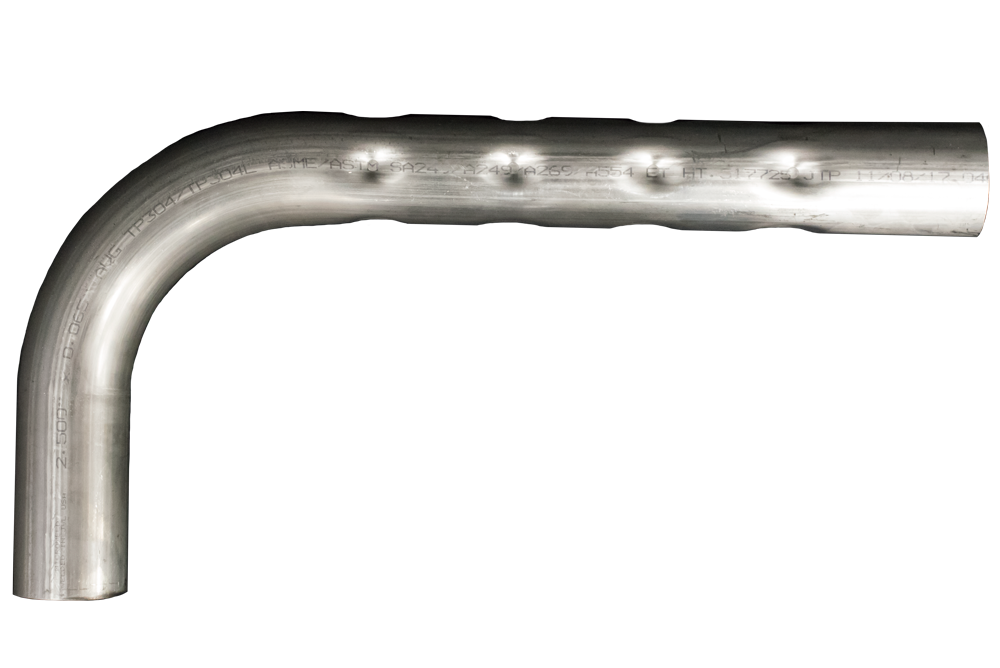

550 BU Top Z-Pipe

Part Number: A-ASP74TZ

Replaces John Deere #: A99257

Click Here for Pipe Guide

550 BU Bottom Z-Pipe

Part Number: A-ASP74BZ

Replaces John Deere #: A99258

Click Here for Pipe Guide

72" Z-Pipe

Part Number: A-ASP72Z

Bottom Tube

Tow Behind

Click Here for Pipe Guide

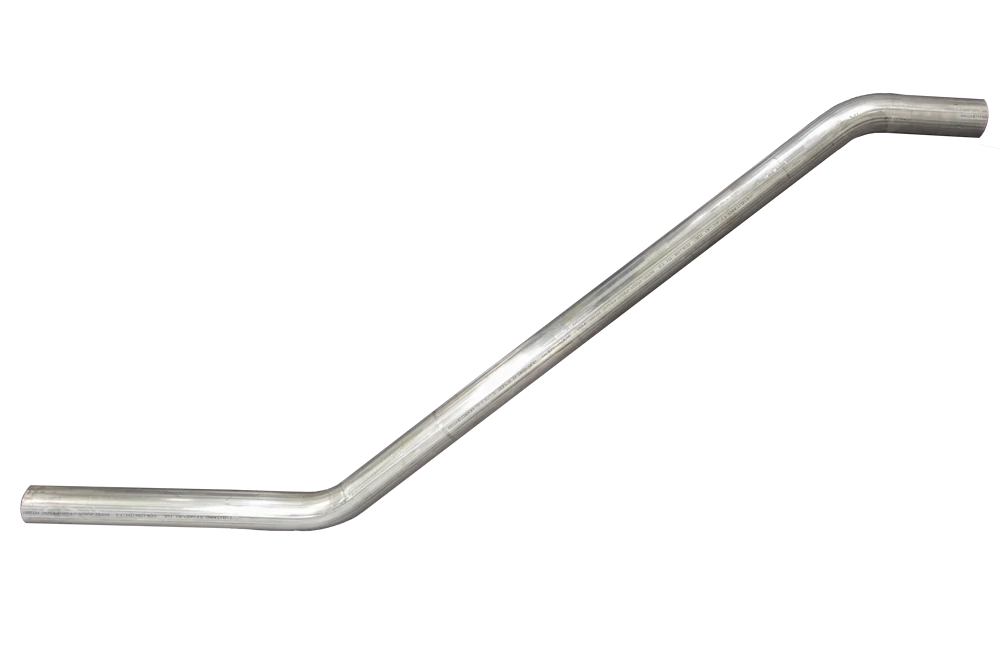

70" Z-Pipe

Part Number: A-ASP70Z

Top Tube

Tow Behind

Click Here for Pipe Guide

52" Z-Pipe

Part Number: A-ASP52Z

Top Tube

Tow Between

Click Here for Pipe Guide

54" Z-Pipe

Part Number: A-ASP54Z

Bottom Tube

Tow Between

Click Here for Pipe Guide

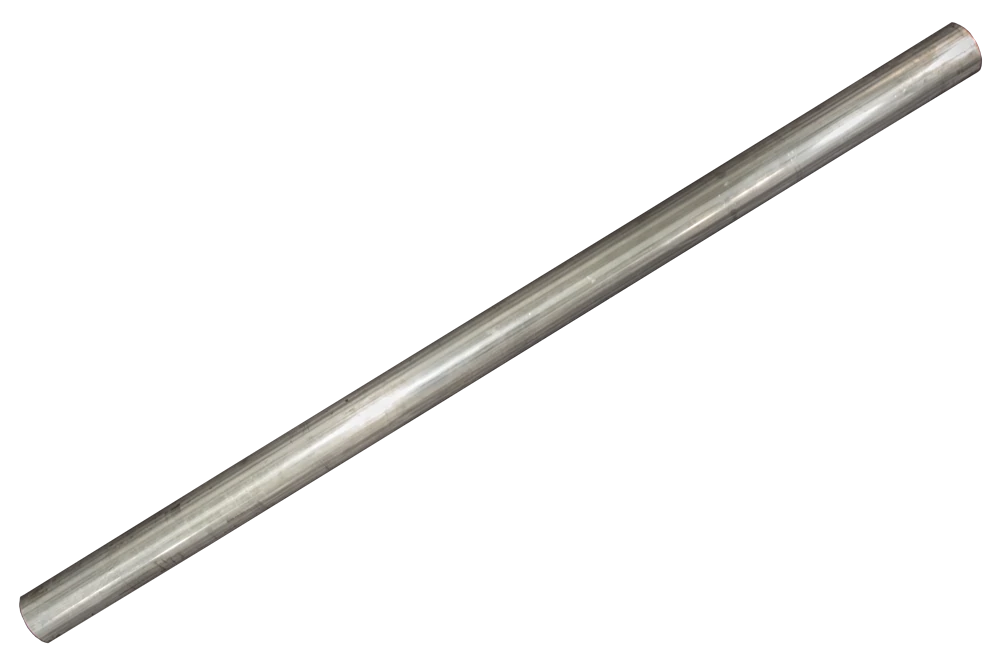

48.5" Straight Pipe

Part Number: A-ASP485

Top Tube for Double Tank

Click Here for Pipe Guide

47.5" Straight Pipe

Part Number: A-ASP475

Bottom Tube for Double Tank

Click Here for Pipe Guide

43" Straight Pipe

Part Number: A-ASP43

Replaces John Deere #: A92241

Click Here for Pipe Guide

42" Straight Pipe

Part Number: A-ASP42

Replaces John Deere #: A92238

Click Here for Pipe Guide

30" Straight Pipe

Part Number: A-ASP30

Bottom Tube for Triple Tank

Click Here for Pipe Guide

29" Straight Pipe

Part Number: A-ASP29

Top Tube for Triple Tank

Click Here for Pipe Guide

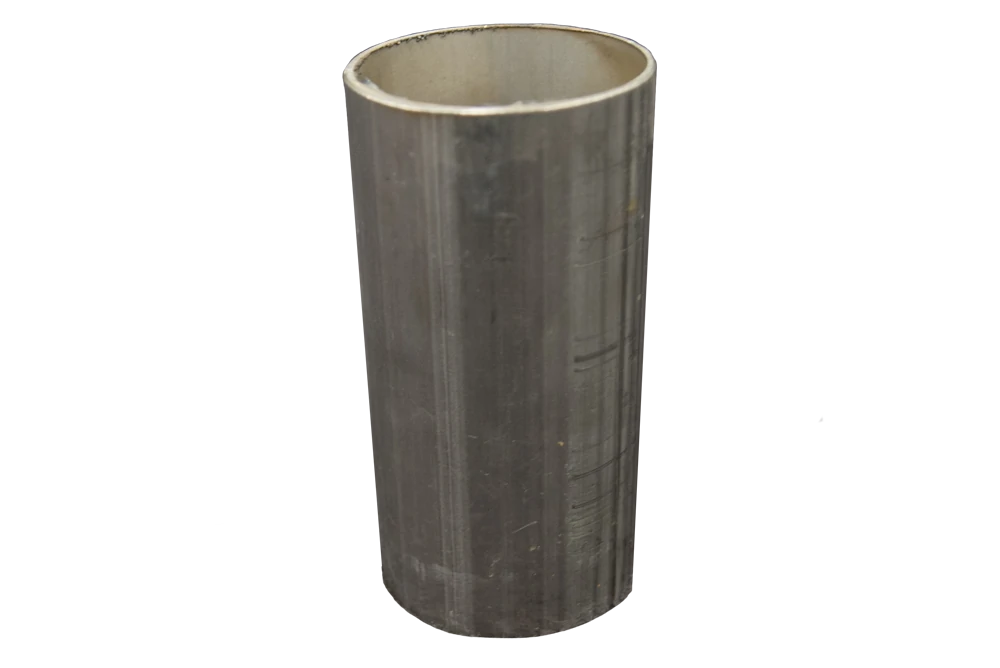

5.5" Straight Pipe

Part Number: A-ASP6

Click Here for Pipe Guide

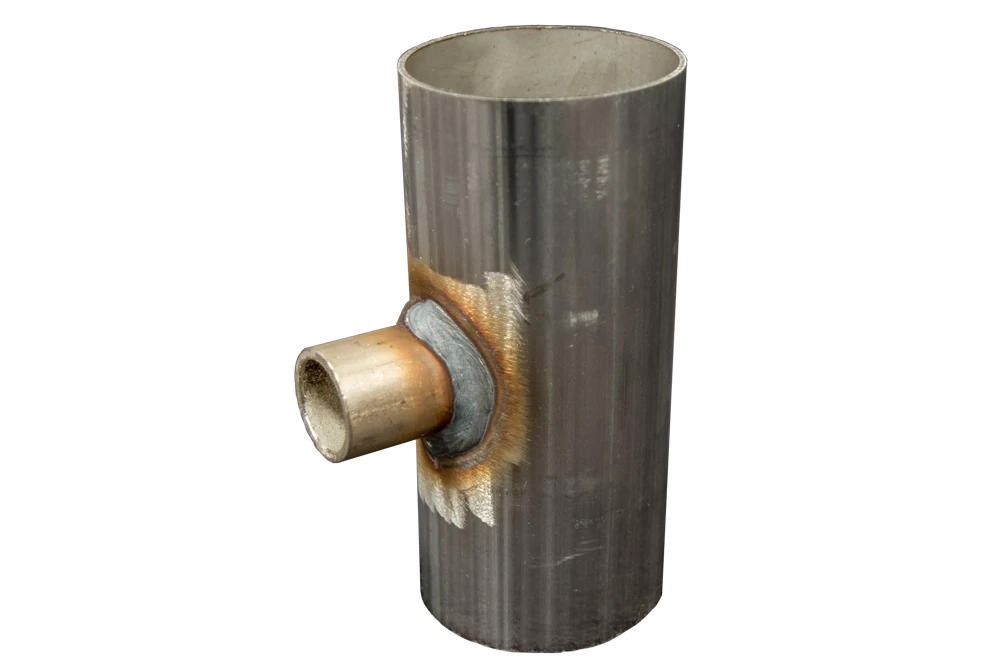

5.5" Straight Pipe With 90° Barb

Part Number: A-ASPV90

Click Here for Pipe Guide

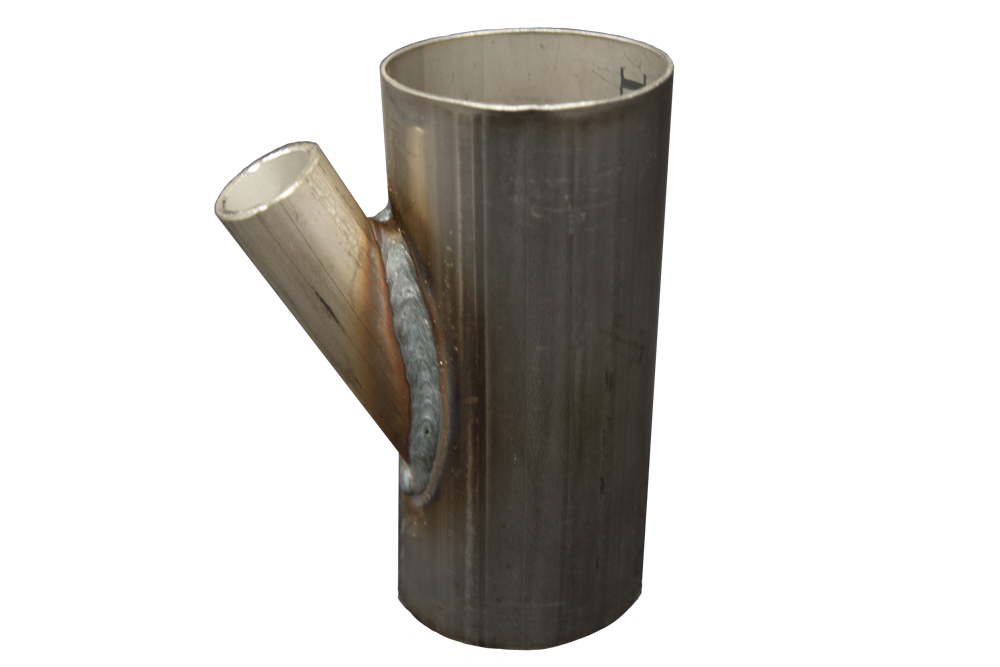

5.5" Straight Pipe With 45° Barb

5.5 inch Straight Pipe With 45 degree Barb

Part Number: A-ASPV45

Click Here for Pipe Guide

90° Tower

Part Number: A-ASPTOWER

Replaces John Deere #: AA76331

Click Here for Pipe Guide

Manifold Lid - Cover Saver Stainless

Part Number: A-CVRSVR100

Protection of new or used manifold lids. Use silicone to adhere

Fits: John Deere #: AA73954

Twist Cap Sold Separately - Purchase from the OEM Manufacturer if Needed

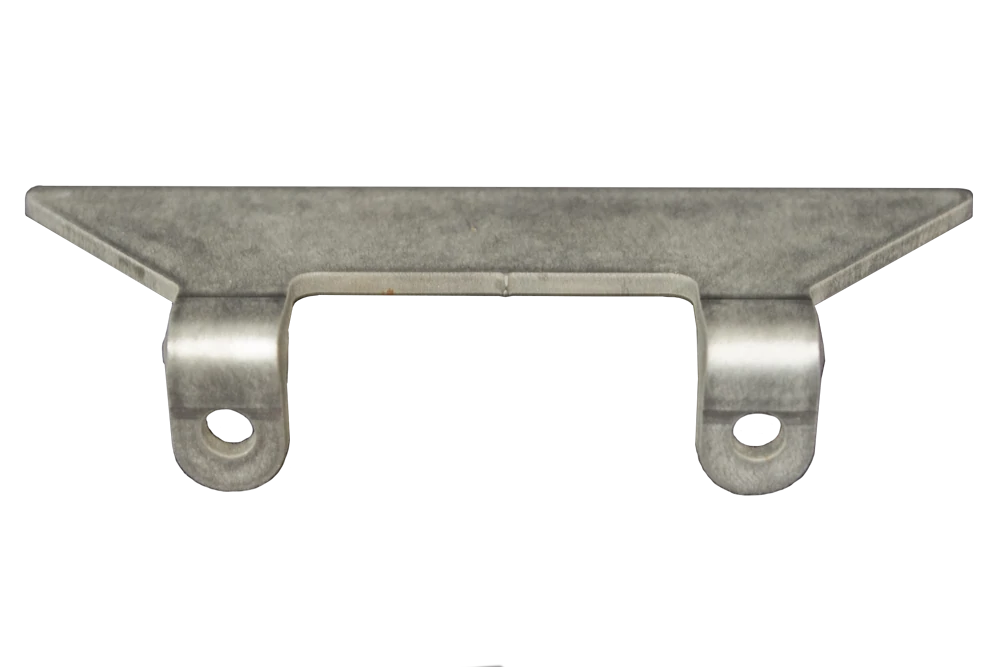

Hydraulic Bracket Kit

Part Number: A-HYDRBRKIT

Conversion for Ground Drive meter to Hydraulic Drive meter.

Includes: Main Bracket, L-Bracket, Shield Mount Bracket, Hydraulic Drive Hardware

Hydraulic Drive Hardware

Part Number: A-HYDRHW

Includes:

5/16" x 1 3/4" Carriage Bolt

5/16" x 2" Carriage Bolts (2)

5/16" Serrated Flange Nuts (3)

3/8" x 1 1/2" Carriage Bolts (2)

3/8" Nyloc Nuts (2)

Anti-Seize Required

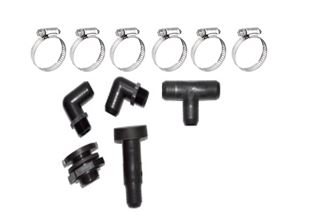

Tank Pressure Kit - Tank Style

Part Number: A-TPKIT100

Includes: Tank Pressure Vent, Tank Pressure Entrance, 1" T Barb, 3/4" Hose Clamps (7)

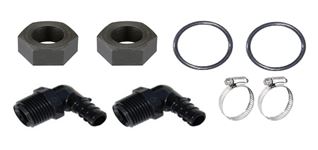

Knock Out Style Tank Pressure Kit

Part Number: A-KOTPKIT100

Includes Elbows (2), O-rings (2), Nuts (2), 3/4" Hose Clamps (2)

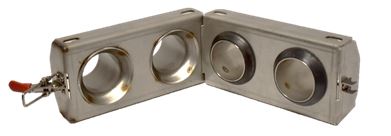

2-Port Connection Tank To Tool

Part Number: A-CONNECT200

Replaces John Deere #: Coupler: A82371, Coupler: AA67121, Gasket: A60759, Latch: AA22119

Includes Locking Latch and Seals

Connection from tank to tool

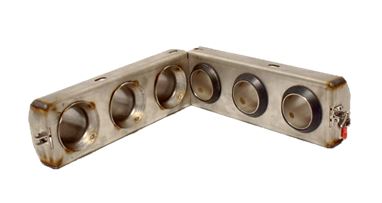

3-Port Connection Tank To Tool

Part Number: A-CONNECT300

Includes Locking Latch and Seals

Connection from tank to tool

1/4" x 7.5” Carriage Bolt

Part Number: A-CBOLT75

Includes: 1/4" x 7.5” Carriage Bolt, 1/4" Serrated Flange Nut

Anti-Seize Required

1/4" x 4” Carriage Bolt

Part Number: A-CBOLT4

Includes: 1/4" x 4” Carriage Bolt, 1/4" Serrated Flange Nut

Anti-Seize Required

Meter Hardware

Part Number: A-METERHW

Includes: 1/2" x 1-1/4" Hex Head Bolts (6), 1/2" Serrated Flange Nuts (14), Small O-rings (4)

Anti-Seize Required

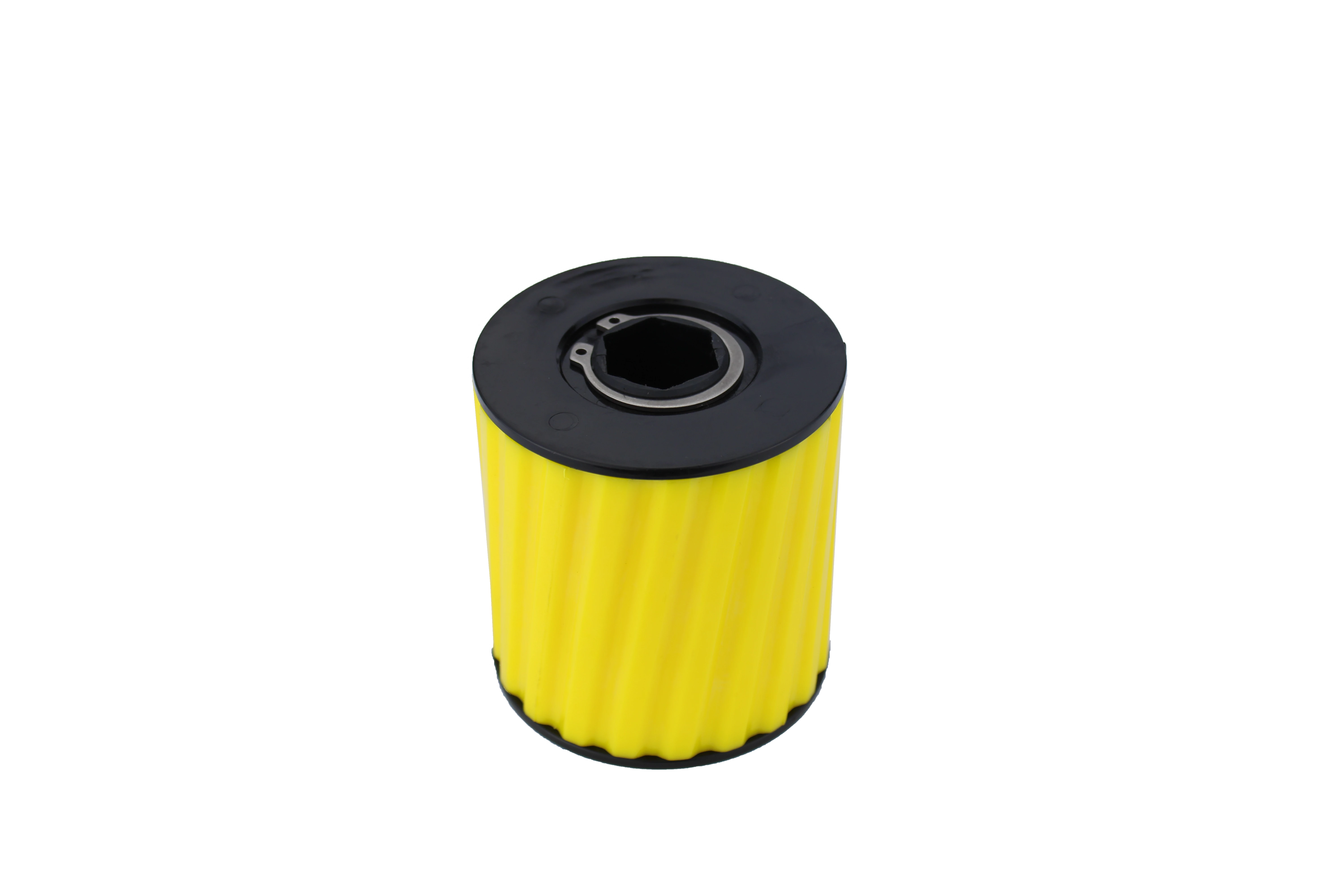

CONTINU-RATE Meter Roller - YELLOW

Part Number: A-CRYELLOW

Replaces John Deere #: AA45605

CONTINU-RATE Tuning Ring - YELLOW

Part Number: A-TRYELLOW

For use with A-CRYELLOW Only

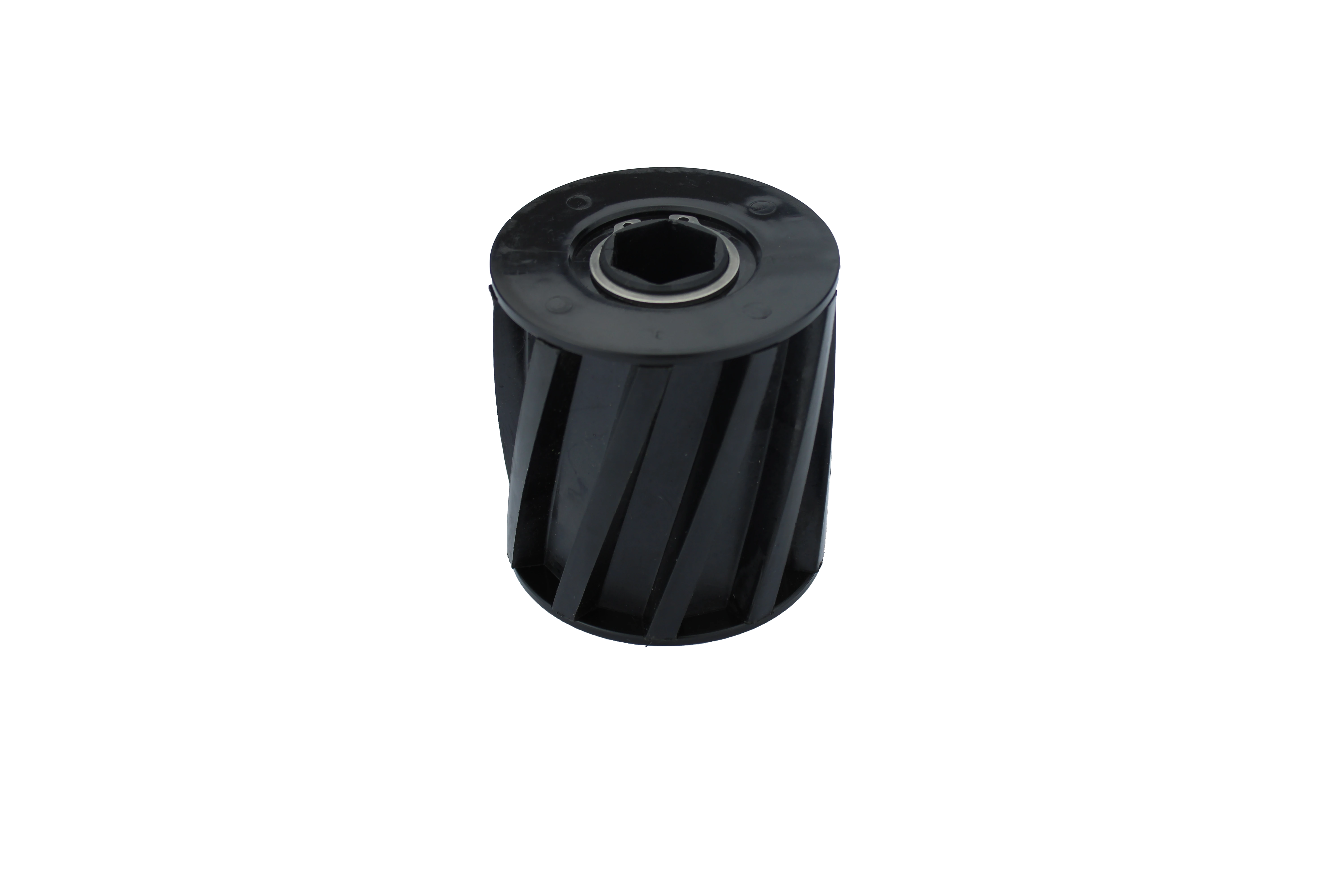

CONTINU-RATE Meter Roller - BLACK

Part Number: A-CRBLACK

Replaces John Deere #: AA45606

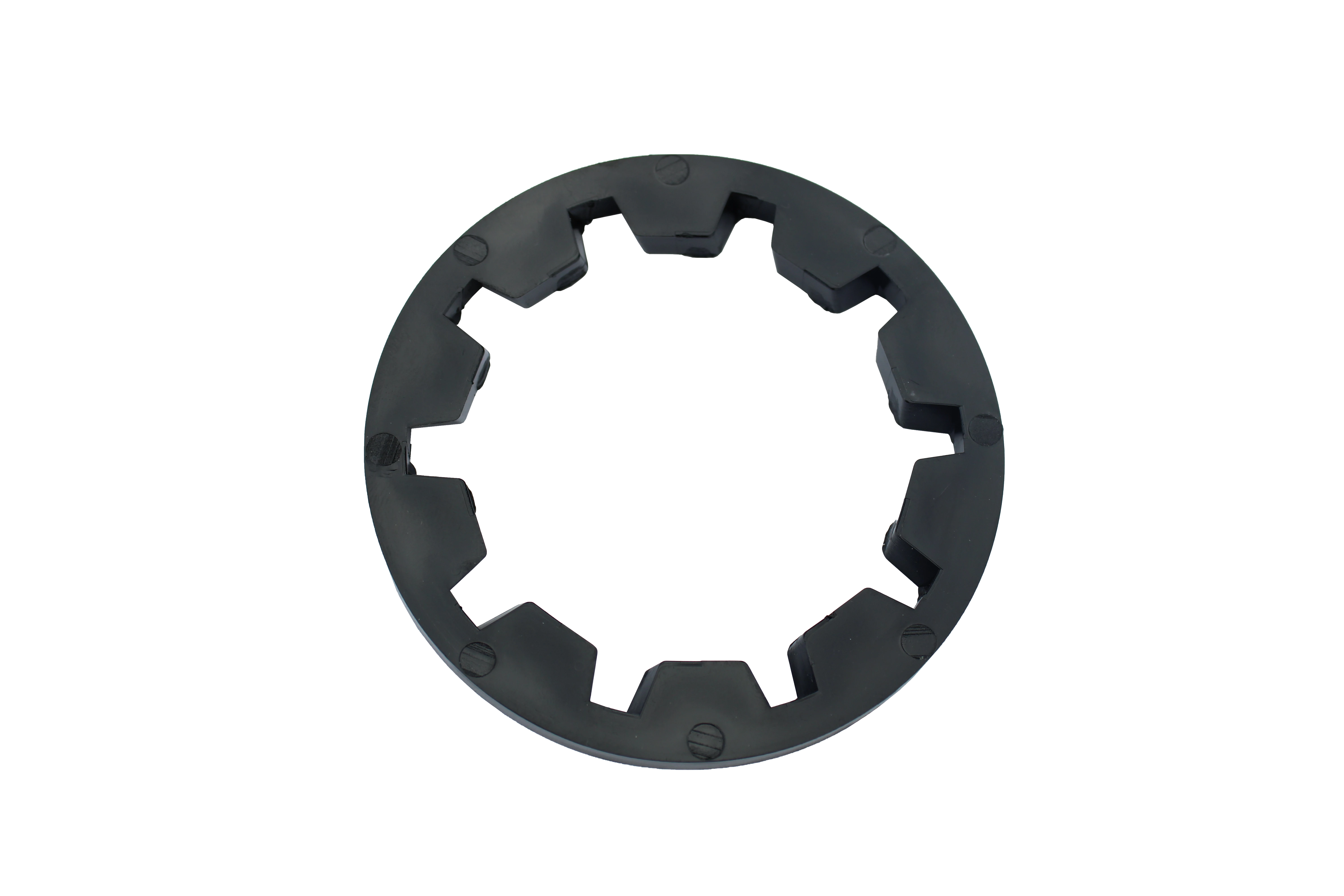

CONTINU-RATE Tuning Ring - BLACK

Part Number: A-TRBLACK

For use with A-CRBLACK Only

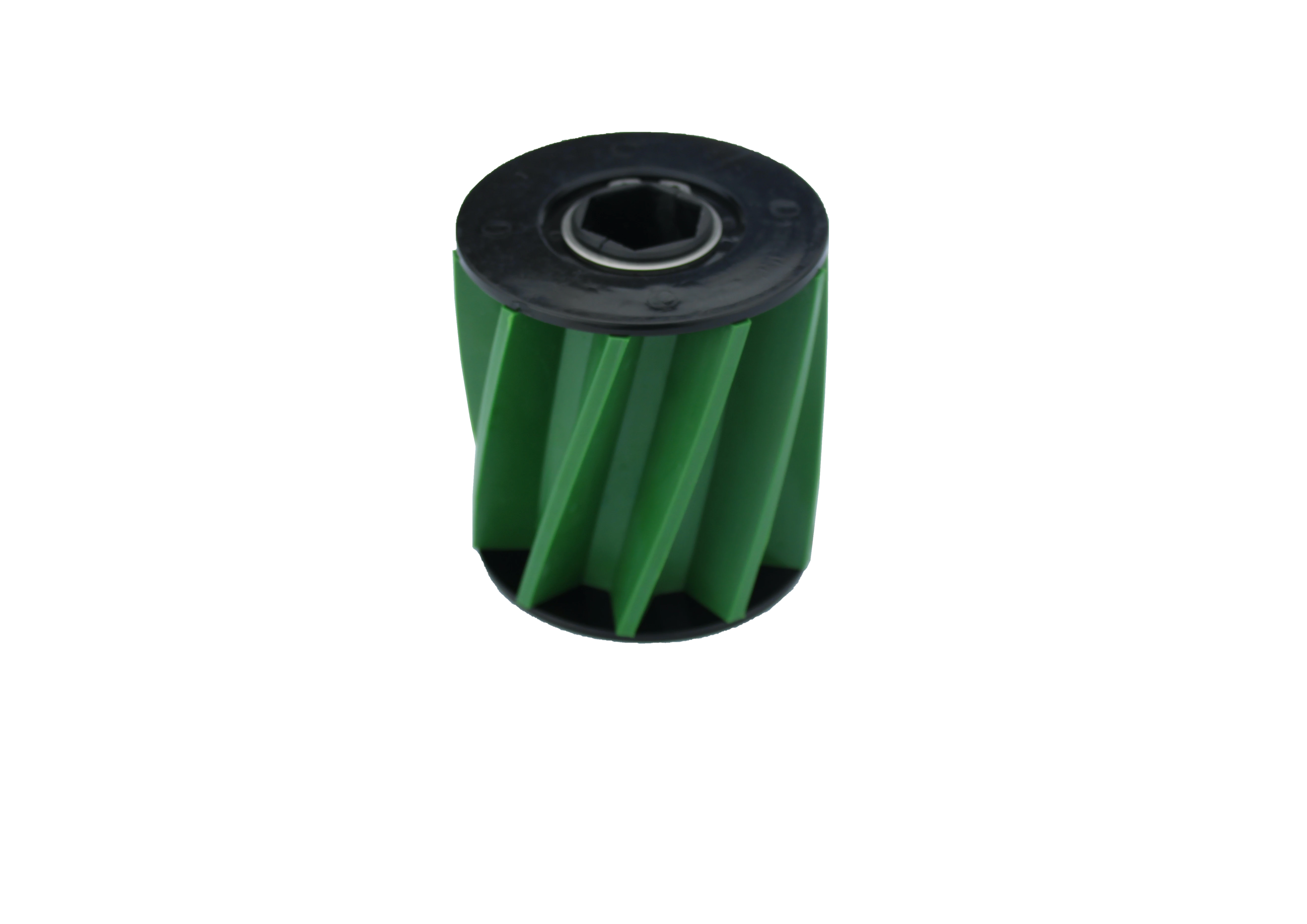

CONTINU-RATE Meter Roller - GREEN

Part Number: A-CRGREEN

Replaces John Deere #: AA45607

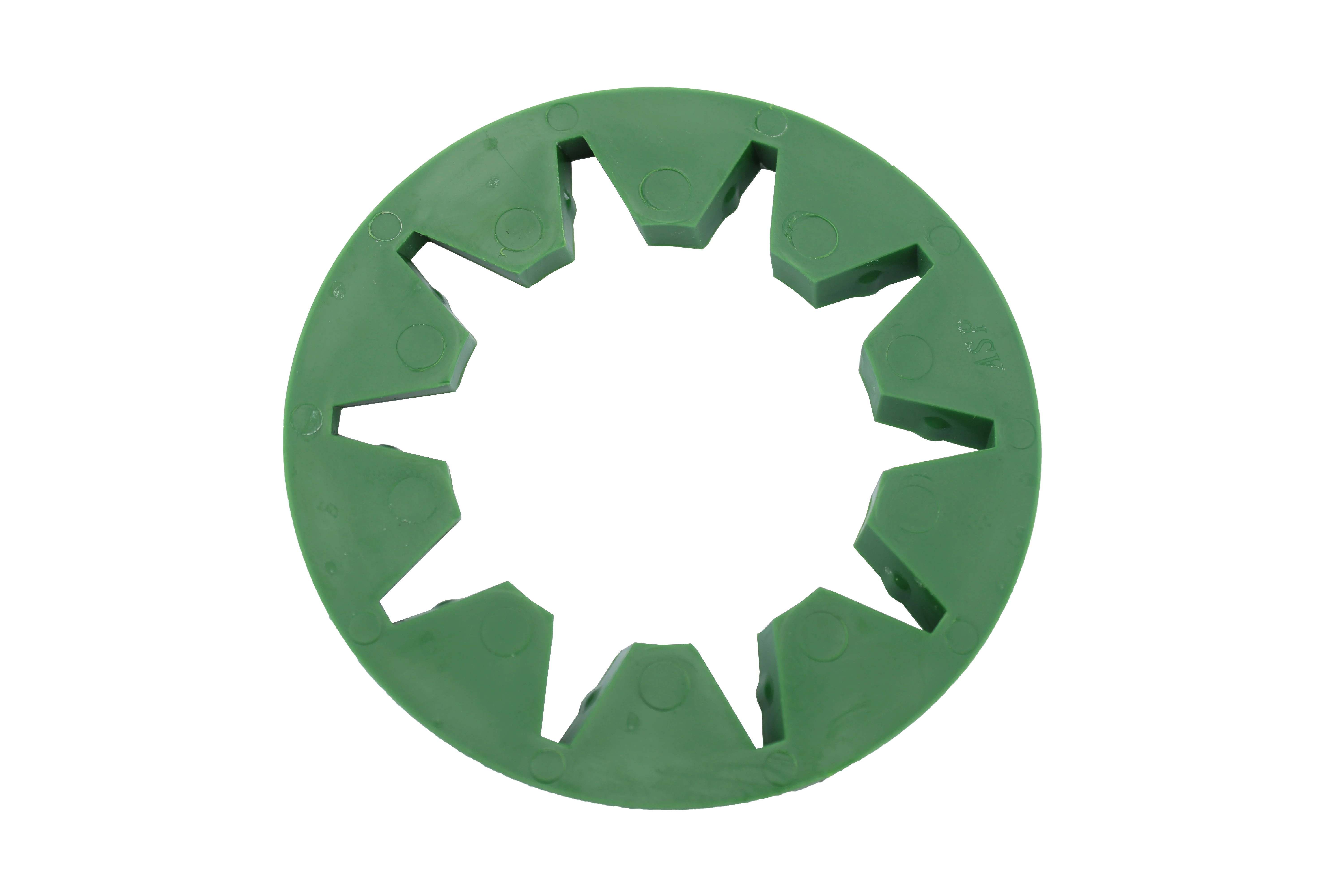

CONTINU-RATE Tuning Ring - GREEN

Part Number: A-TRGREEN

For use with A-CRGREEN Only

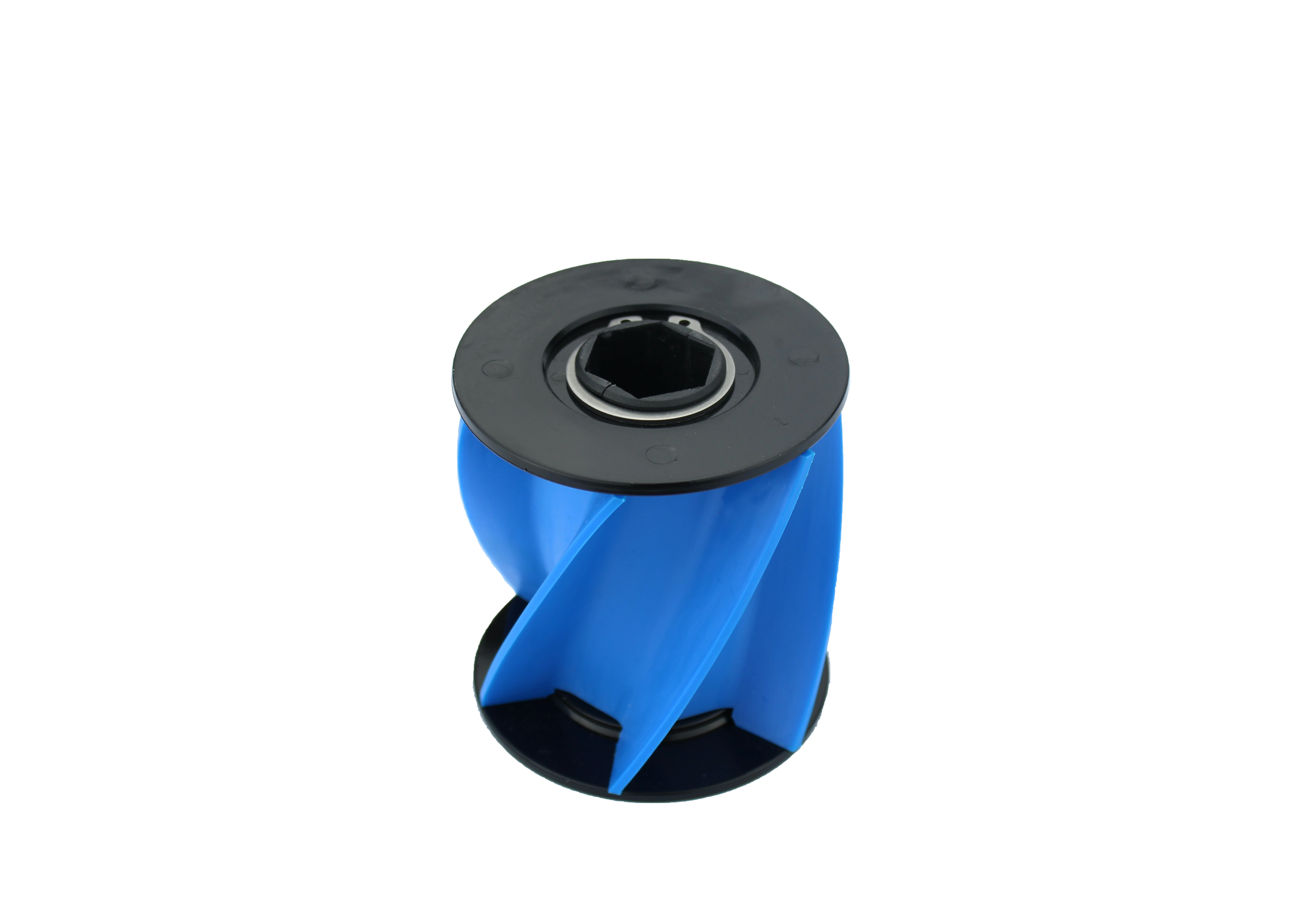

CONTINU-RATE Meter Roller - BLUE

Part Number: A-CRBLUE

Replaces John Deere #: A69212

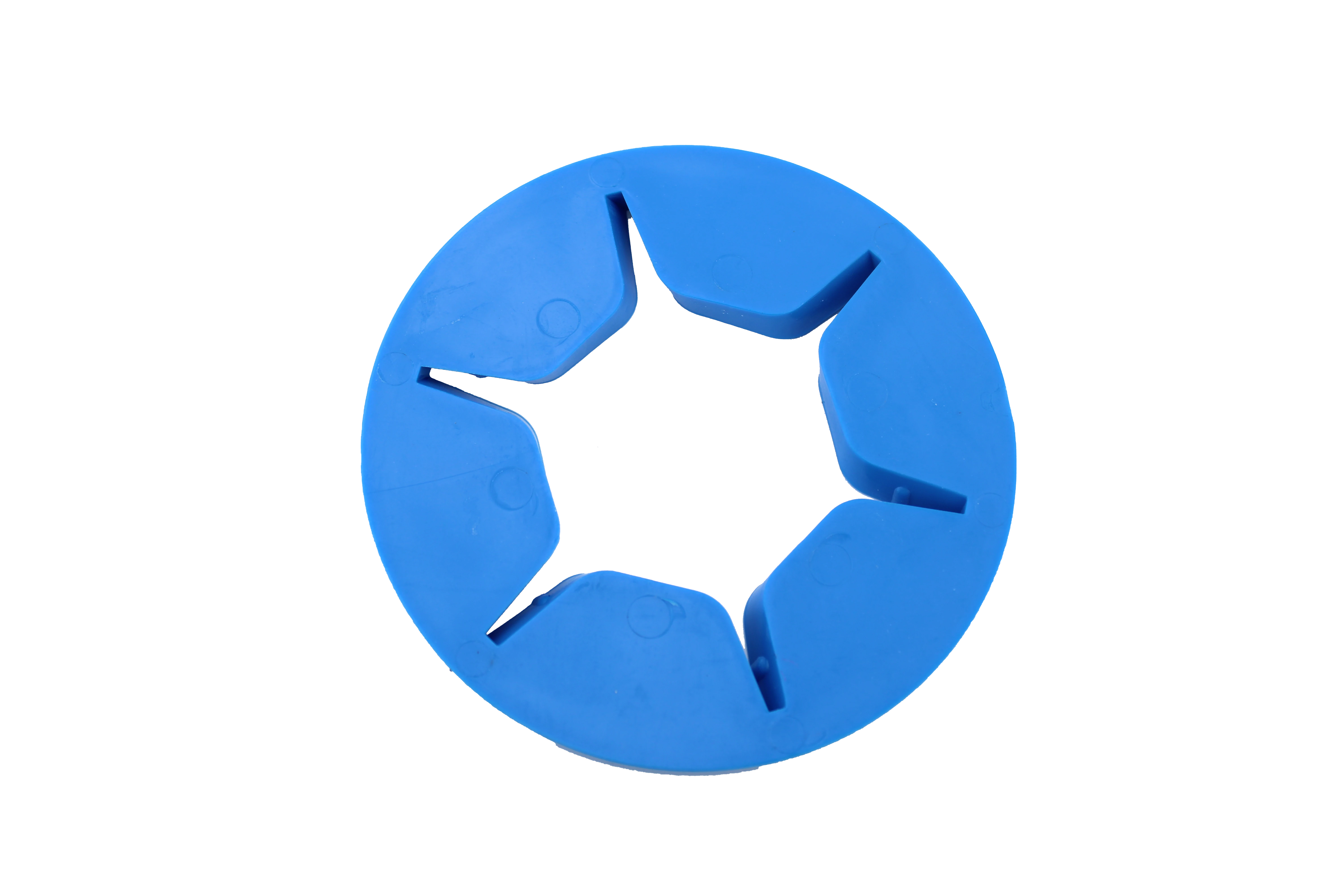

CONTINU-RATE Tuning Ring - BLUE

Part Number: A-TRBLUE

For use with A-CRBLUE Only

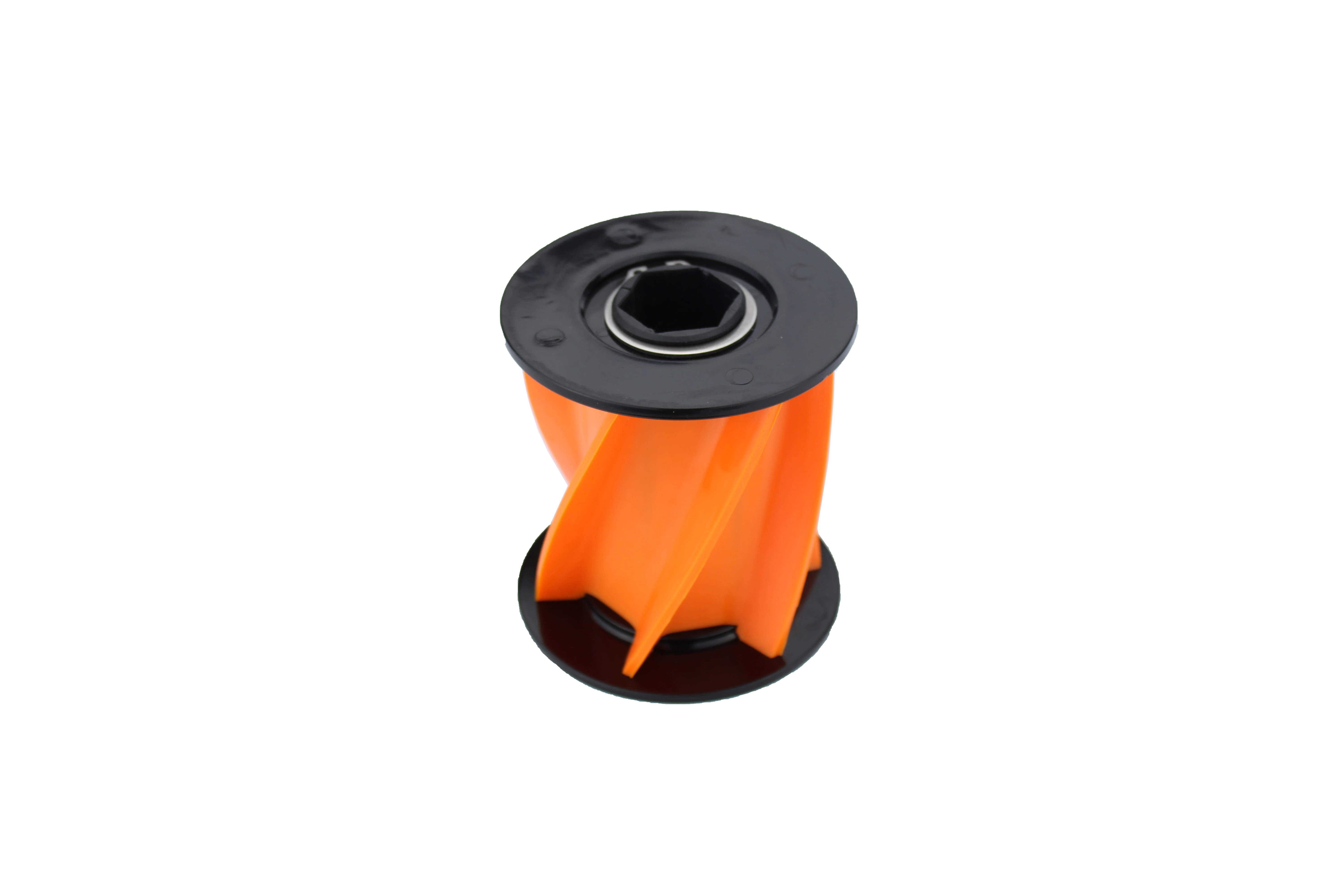

CONTINU-RATE Meter Roller - ORANGE

Part Number: A-CRORANGE

Replaces John Deere #: AA79334

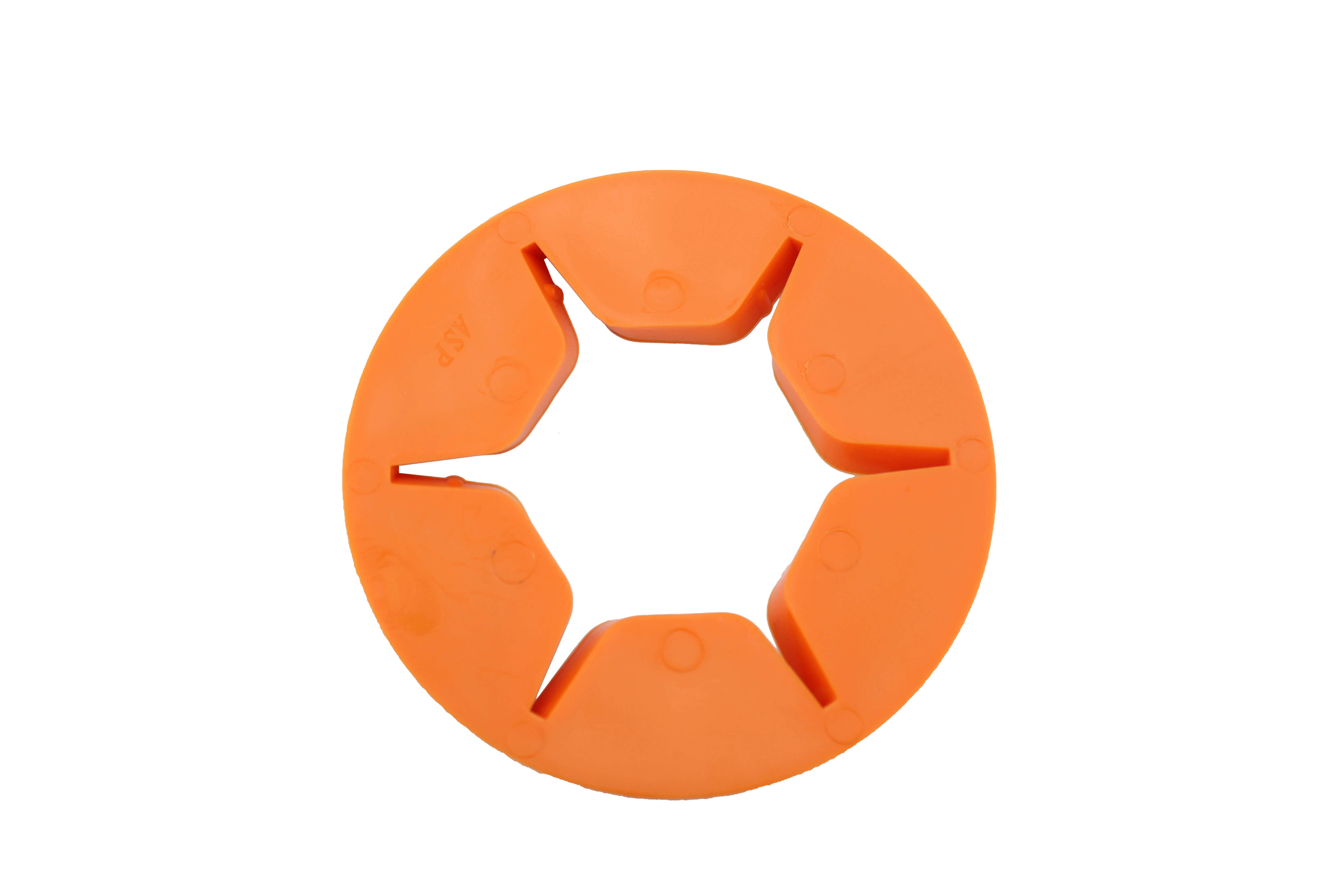

CONTINU-RATE Tuning Ring - ORANGE

Part Number: A-TRORANGE

For use with A-CRORANGE Only

Air Seeder Parts
